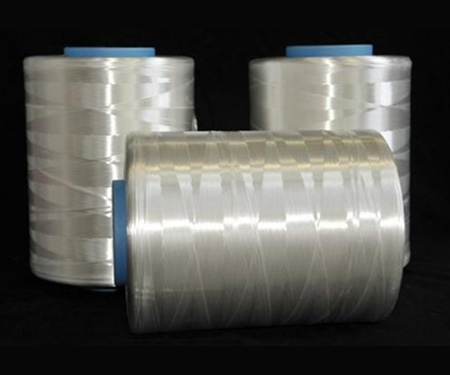

Industrial High Tenacity Nylon 6 Yarn | |||||
Item | Unit | 2100dtex/315f (1890D) | 1870dtex/280f (1680D) | 1400dtex/210f (1260D) | 930dtex/140f (840D) |
Liner Density | dtex | 2100±30 | 1870±30 | 1400±30 | 930±30 |
Relative Strength | g/D | > 9 | > 9 | > 9 | > 9 |
Variation Coefficient of Liner Density | % | ≤0.64 | ≤0.64 | ≤0.64 | ≤0.64 |
Tensile Strength | N | ≥170 | ≥150 | ≥113 | ≥73 |
Elongation at Break | % | 19-24 | 19-24 | 19-24 | 19-24 |
Elongation at Standard Load | % | 12±1.5 | 12±1.5 | 12±1.5 | 12±1.5 |
Variation Coefficient of Tensile Strength | % | ≤3.5 | ≤3.5 | ≤3.5 | ≤3.5 |
Tensile Strength Elongation at Break | % | ≤5.5 | ≤5.5 | ≤5.5 | ≤5.5 |
OPU | % | 1.1±0.2 | 1.1±0.2 | 1.1±0.2 | 1.1±0.2 |
Thermal Shrinkage160℃,2min； | % | ≤8 | ≤8 | ≤8 | ≤8 |
Thermal Stability 180℃,4h; | % | ≥90 | ≥90 | ≥90 | ≥90 |
Paper Tube | mm | ø75×ø89×ø300 | ø75×ø89×ø300 | ø75×ø89×ø300 | ø94×ø108×ø225 ø94×ø106×ø300 |
Bobbing Weight | Kg/p | 7.0 - 9.0 | 7.0 - 9.0 | 7.0 - 9.0 | 6-7.5 |
Grade Type | A | A | A | A | A |
Specifications | |
Use | Widely used for Nylon Fabric, Nylon Canvas, Nylon Geo-cloth, Ropes, Fishing Net, etc. |
Sizes | 840D, 1260D,1680D, 1890D |
Colors | Snow White,Natural White and Pink |
Features | High tensile strength Low liner density Big bobbin No thrum Good thermal stability |
Nylon Filament Yarn Product List | |||
DENIER | FILAMENT | LUSTER | CROSS SECTION |
110 | 24 | Bright | Circular |
140 | 24 | Bright | Circular |
210 | 24 | Bright | Circular |
280 | 14 | Bright | Circular |
380 | 48 | Bright | Circular |
420 | 48 | Bright | Circular |
480 | 48 | Bright | Circular |
590 | 96 | Bright | Circular |
630 | 96 | Bright | Circular |

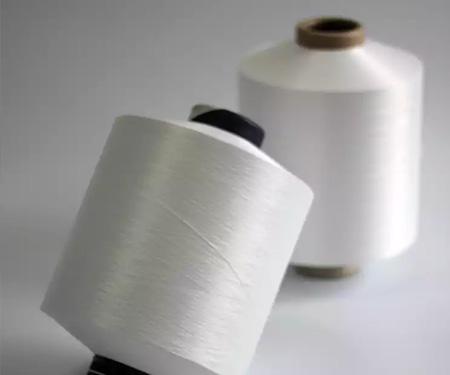

High Tenacity Nylon Yarn Properties | |||||||
DENIER | |||||||
PROPERTIES | 110D 24F ± 2% | 140D 24F ± 2% | 210D 24F ± 2% | 280D 14F ± 2% | 420D 48F ± 2% | 590D 96F ± 2% | 630D 96F ± 2% |
%ELONGATION | 23 ± 5 % | 23 ± 5 % | 23 ± 5 % | 35 ± 5 % | 23 ± 5 % | 23 ± 5 % | 23 ± 5 % |
CV OF ELONGATION | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 |
TENASITY(GPD) | ≥ 7.5 | ≥ 7.5 | ≥ 7.5 | ≥ 6.5 | ≥ 7.5 | ≥ 7 | ≥7 |
CV OF TENASITY | ≤ 4 | ≤ 4 | ≤ 4 | ≤ 4 | ≤ 4 | ≤ 4 | ≤ 4 |
%USTER | 1.2 ± 0.5 | 1.2 ± 0.5 | 1.2 ± 0.5 | 1.2 ± 0.5 | 1.2 ± 0.5 | 1.2 ± 0.5 | 1.2 ± 0.5 |
CV OF USTER | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 |
%OIL PICKUP | 0.9 ± 0.05% | 0.9 ± 0.05% | 0.9 ± 0.05% | 0.9 ± 0.05% | 0.9 ± 0.05% | 0.9 ± 0.05% | 0.9 ± 0.05% |
% SHRINKAGE @100`C 30MIN. | 11 ± 0.5% | 11 ± 0.5% | 11 ± 0.5% | 11 ± 0.5% | 11 ± 0.5% | 11 ± 0.5% | 11 ± 0.5% |
ENTANGLEMENT | 12 ~ 15 | 12 ~ 15 | 8 ~ 10 | 8 ~ 10 | 3 ~ 5 | 3 ~ 5 | 3 ~ 5 |
DEVIATIONS RATE OF LINEAR DENSITY | ± 1.1% | ± 1.1% | ± 1.1% | ± 1.1% | ± 1.1% | ± 1.1% | ± 1.1% |
All properties mentioned are lot averages.
Hot air shrinkage test and conditions - Temp 160 C/ Exposure Time 5 min / Pretension 9 gm.
Above specification is measured in accordance with the standard of our factory & it can be changed without prior notice.

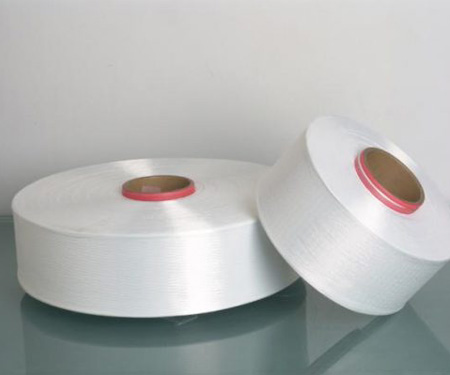

Mother Yarn List | ||||
DENIER | FILAMENT | LUSTER | CROSSSECTION | PACKING |
180 | 12 | SD,BR | Circular, Triangle | Cheese |
200 | 10 | SD,BR | Circular, Triangle | Cheese |
240 | 12 | SD,BR | Circular, Triangle | Cheese |
300 | 10 | SD,BR | Circular, Triangle | Cheese |
300 | 6 | SD,BR | Circular, Triangle | Cheese |
320 | 16 | SD,BR | Circular, Triangle | Cheese |
360 | 12 | SD,BR | Circular, Triangle | Cheese |
400 | 12 | SD,BR | Circular, Triangle | Cheese |
420 | 12 | SD,BR | Circular, Triangle | Cheese |

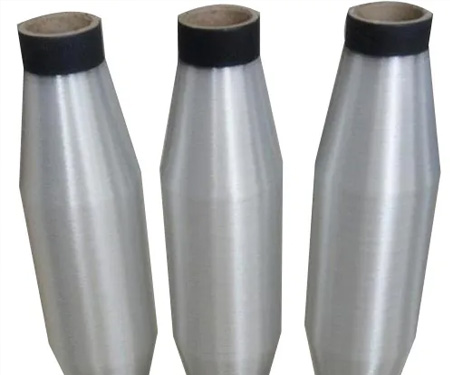

Mono Yarn List | ||||
DENIER | FILAMENT | LUSTER | CROSSSECTION | PACKING |
10 | 1 | SD,BR | Circular, Triangle | Cops |
15 | 1 | SD,BR | Circular, Triangle | Cops |
20 | 1 | SD,BR | Circular, Triangle | Cops |
30 | 1 | SD,BR | Circular, Triangle | Cops |
40 | 1 | SD,BR | Circular, Triangle | Cops |
45 | 1 | SD,BR | Circular, Triangle | Cops |
50 | 1 | SD,BR | Circular, Triangle | Cops |

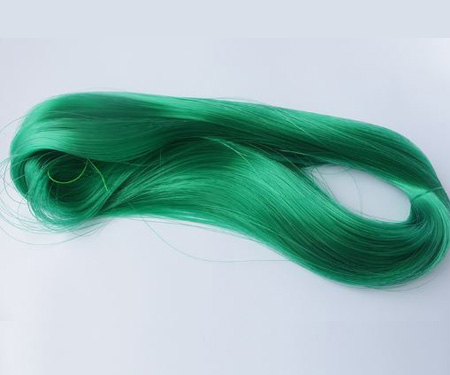

0.1 mm to 0.47 Diameter with high tenacity | |||||
PRODUCT NAME | LENGTH(M) | LINE NUMBER | DIA (MM) | TEST(LB) | TEST(KG) |
FISHING LINES | APPROX 500 | 0.4 | 0.1 | 2 | 0.9 |
0.6 | 0.12 | 4 | 1.81 | ||
0.8 | 0.14 | 5 | 2.25 | ||
1 | 0.16 | 6 | 2.72 | ||
1.5 | 0.2 | 7 | 3.15 | ||
2 | 0.23 | 8 | 3.62 | ||
2.5 | 0.26 | 10 | 4.53 | ||
3 | 0.28 | 12 | 5.44 | ||
3.5 | 0.3 | 14 | 6.34 | ||
4 | 0.33 | 16 | 7.25 | ||
5 | 0.37 | 20 | 9.06 | ||
6 | 0.4 | 25 | 11.33 | ||
7 | 0.43 | 30 | 13.59 | ||
8 | 0.47 | 18.8 | 8.46 | ||

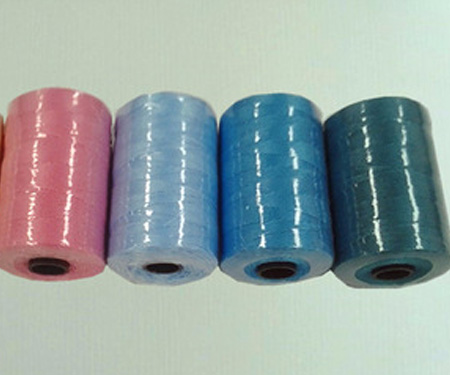

70 D to 210 D with 2 to 9 Twine with high tenacity
